Certifications

UL US/CA Approved – E527333

FCC – RI7LE910CXNF

CE

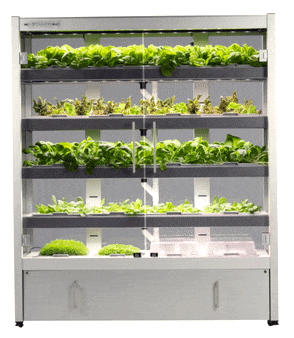

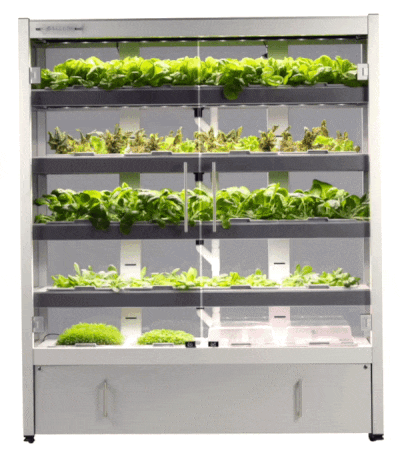

Galleri Micro-Farm Specifications

Unit Dimensions*
Inches: 67”width x 29.75” depth x 79.75” height
Meters: 1.71 width x 0.76 depth x 2.03 height

* At least 4” (10.2cm) clearance for rear, sides and top of farm

Shipping Dimensions
US: Inches: 72”width x 48”depth x 87.5” height
International:
Inches: 73.5”width  x 50”depth  x 88” height
Meters:  1.87 width  x 1.27 depth x 2.24 height

Door Outswing
59” outswing (1.5m)

Weight
600 lbs (272 kg)
900 lbs with water (408.2 kg)
900 lbs fully crated (408.2 kg)

Power Consumption
13 kwh/day

Built to be Beautiful

Location

• Ceiling height >84” (2.13m)
• At least 4” (11cm) of clearance on rear, top, and sides of the farm
• Level, stable flooring at least 6’ x 5’ (2m x 1.75m)
  • No transitions (e.g., wood to tile)
  • Carpet not recommended
• The floor must be able to support 900 lbs (410kg) on four leveling feet
• Sink or drain within 50’ (15m) of Micro-Farm
  • The unit will not be directly attached to a sink or drain
  • Instead, a hose will be connected to the reservoir for periodic draining
• At least 3’ (1m) away from any sun-facing windows (recommended)
• Food-safe pest control measures in place

Water Line

• 1/4” (OD) flexible cold water line run directly behind but not under farm
• Dedicated line, independent from other equipment
• Minimum flow rate through the farm 10 gph
• Minimum pressure 45 psi

Water Quality

• Water must be potable
• Chlorine level not to exceed 2ppm
• Water hardness not to exceed 200 ppm
• Alkalinity not to exceed 75 ppm
• Electrical conductivity not to exceed 0.8ms/cm

Babylon tests water quality to confirm it meets above requirements. Otherwise, customers must install a reverse osmosis filtration system and booster pump to ensure crop success. Please note the RO filter must be connected to a sewer line.

Electric

• 120v (or 220V, 50 Hz*) outlet on a dedicated 15-amp circuit
  • CE compliance requirement: outlet must be accessible to disconnect power in event of emergency
• Outlet within 10 (3m) feet of farm location
• Two Micro-Farms may share the same dedicated 20-amp circuit
  * Not UL-approved

HVAC

• Ambient room temperature of 67°-76°F (19.4°–24.4°C)
• Relative humidity of 30%-60%

Connectivity

The Micro-Farm connects to the cloud via hardwired ethernet connection (Preferred).

• Client to furnish a standard ethernet cable (Cat5 or better cable w/ RJ45 connector)
• Connection point located on back of unit, to the lower left, near power cord
• Contact us if you have a complex network setup, stringent firewalls, etc.

For US customers, an integrated cellular modem can serve as a backup connectivity method.

• Verizon LTE signal strength at farm location must be >-95dB
• Note: All cellular communications are isolated to the cellular modem and monitored by Babylon.

What can I Grow in my Galleri Micro-Farm?

A Galleri can grow combinations of 45+ Leafy Greens, Lettuces, Micro-Greens, Herbs, and Flowers.  Our is slightly different for US and International customers.  Below are many of the plants, mixes, and varieties you can choose from. See our produce page for more information, grow times, etc…

Note: Produce items subject to change

Crop Yield Averages

Single Crop Monthly Harvest Averages

• 12-20 lbs Leafy greens per month (4 zones only – excludes bonus micro-green tray)
• 8 – 16 lbs of Herbs per month ( 4 zones only – excludes bonus micro-green tray)
• 140 – 400 oz ~ 24lbs of Microgreens per month (All 5 zones, harvested twice)

Average Harvests
The following chart is based on a typical single-zone harvest schedule

Remote Monitoring & Management

Automated growing is possible through our proprietary BabylonIQ technology, sensors and cameras,  which continuously relay data about the farm. Making performance adjustments from afar ensures plants receive the optimal amount of light, water and nutrients 24×7.

You also have access to key information and controls through the companion GuidedGrowing app. The app assists you in the on-site management needs of the farm including harvesting and cleaning.

Support Services & Subscription

We fully support our Micro-Farms with live support and 24×7 virtual support systems.  Each Micro-Farm also comes with a warranty.

Our support team and subscription services include these features:

• US-based account manager for training and ongoing support
• Access to  the GuidedGrowing App
• Seed subscription
• Cleaning and support supply subscription
• Help center with answers to 70+ common questions
• How-to videos on farm operation and maintenance
• Educational emails each month
• Alert & notifications system guides operators / account managers
• Cellular internet service (if needed)
